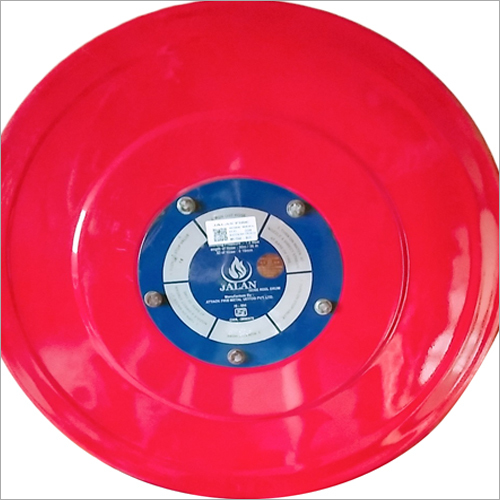

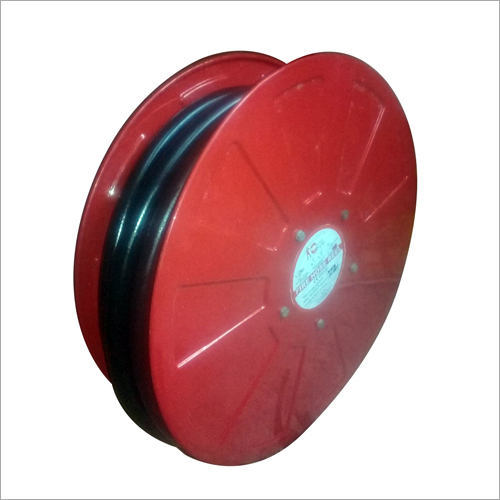

First Aid Hose Reel

Product Description

First Aid Hose Reel has been recommended for its effective use in many fixed installations. It has special uses in various premises and give efficiency to the fire engines. This is an equipment included with a reel and allows for an effective firefighting facility. First Aid Hose Reel is highly useful in locations where a continuous flow of water is needed for the extinguishing of a fire. This is extensively demanded for warehouses, large office blocks and schools.

Technical Specifications

• Type : Swinging 180 Deg. Wall Mounting
• Size : Inlet 20mm (3/4" Bsp Thread Size)
• Conforming Specification : is 884

• Hub Sides & Wall Bracket  - M.s. Sheet of  is : 513
• Swivet Joint                            - Ltb-2 of is :318
• Pipe With Fitting                   - Steel of is : 1239 Part I
• Branch Pipe With Nozzle  - is :8090
• Hose Reel Tubing                 - Hydraulic  Rubber / Thermoplastic Hose  Conf to is : 444/is : 12585

• Hydrostatic Test : Tested at 21 Kgf/cm2
• Range & Water Flow Rate Test at 7 Kgf/cm2

(A) Discharge : 24 Lmp
(B) Range (Jet Length) : 6 Mtr (Min)
